Zink Bike Vacay Frame Troy Lee SE - Special order

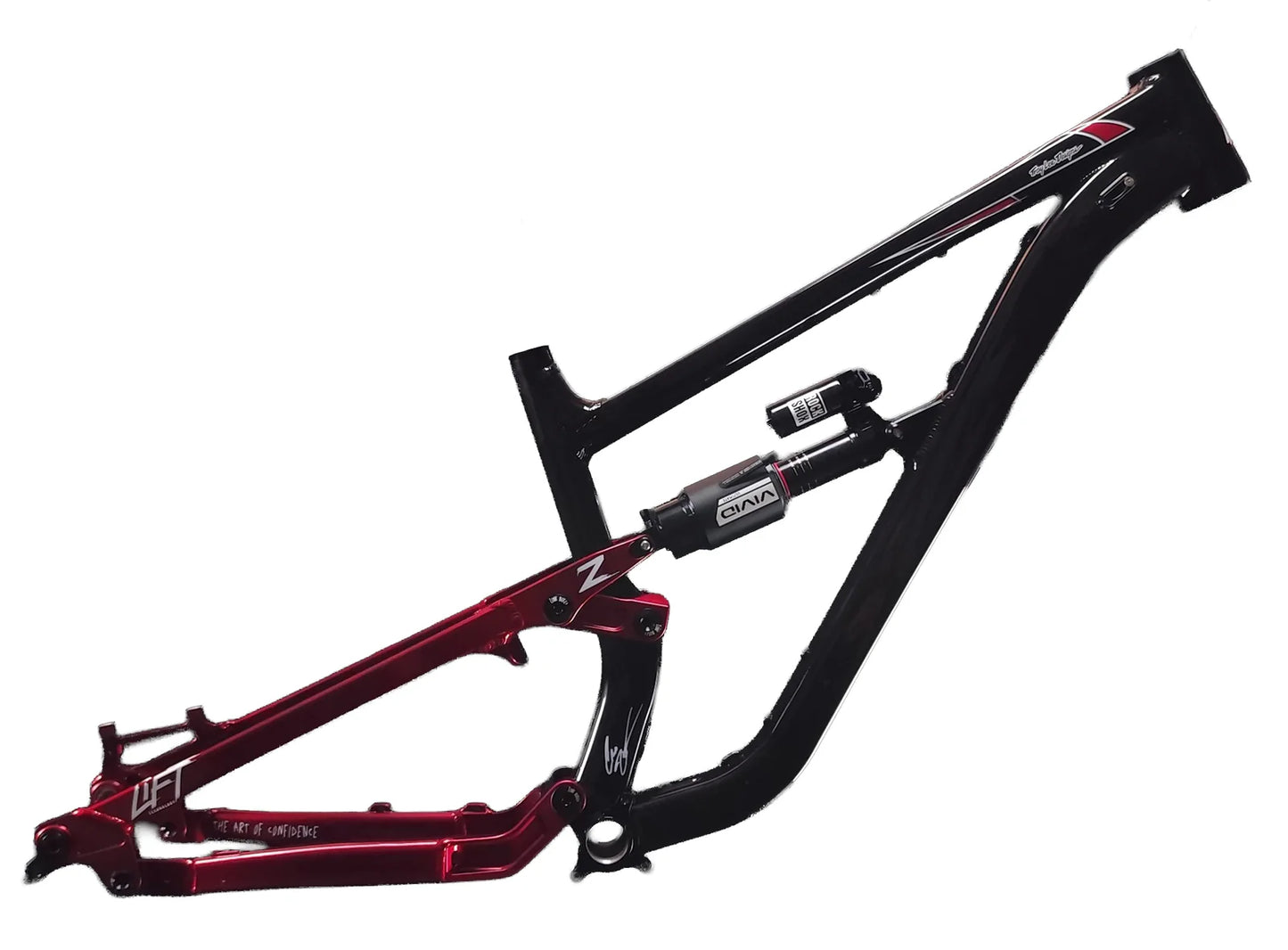

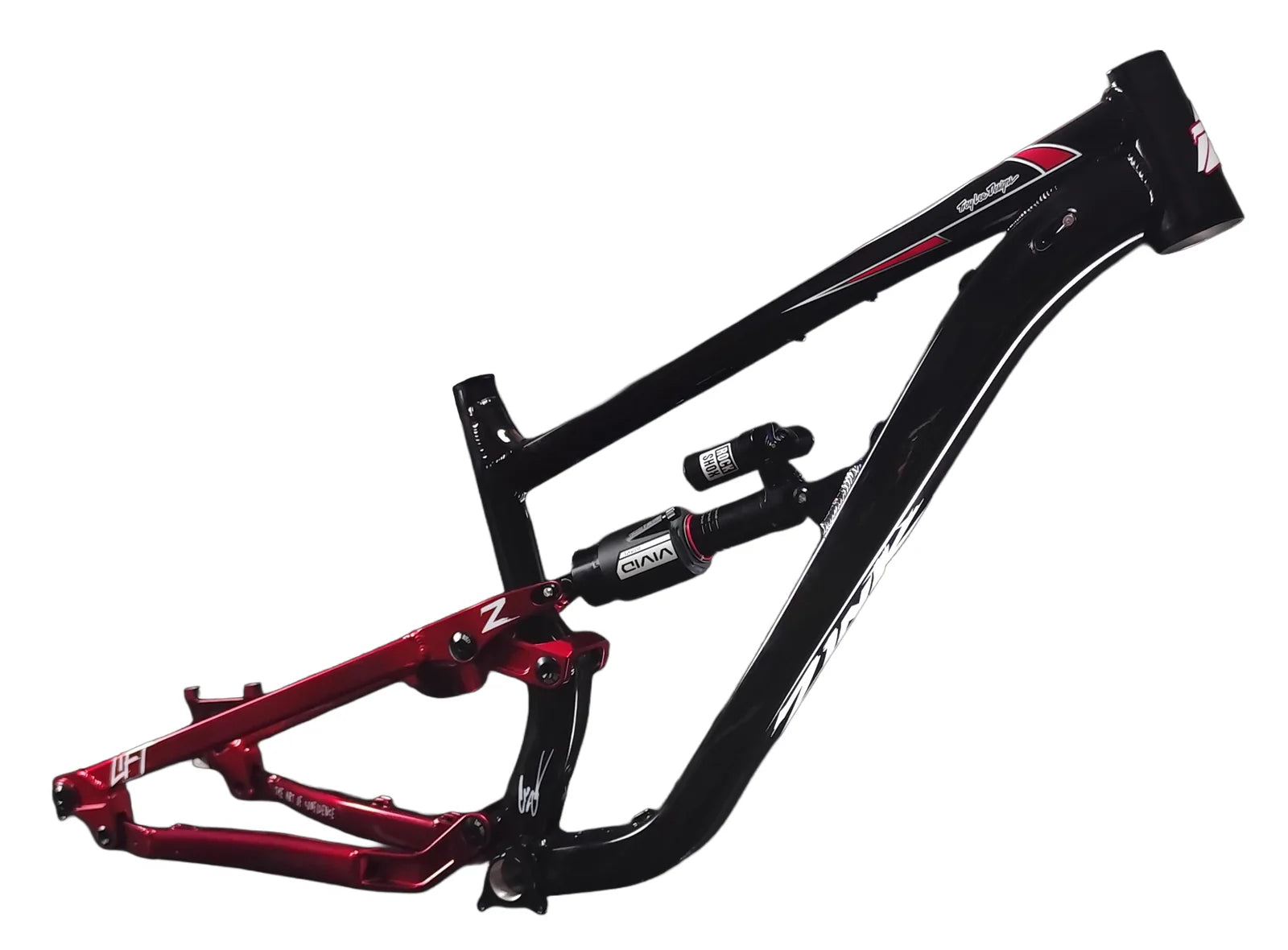

The VACAY is our first release- This 150mm travel aluminum frame is the ethos behind Zink Bikes. If this bike existed anywhere else, we wouldn’t have felt the need to create it.

With our Lift Technology, the 420/426 chainstays aren’t the only reason you will be manualing with ease; Lift Suspension Characteristics were implemented for everything from flat-drop-backflips, to simply lifting your front wheel over a log with ease.

“I truly built this bike for me, but I think you’ll love it too.” - Cam Zink

Rear shock NOT included

This is a special order item please call to check lead times - Estimated time=  2-3 days to arrive in store.   (5-10 days home delivery)

Incredibly progressive suspension platform with Lift Technology, providing confidence making manuals, lifting your front wheel over a log, jumps, and side-hits easier than ever before

• Short rear-end geometry
• Three flip chip options for over a degree of head-angle and seat-tube angle adjustability. As well as 14mm of bottom bracket height adjustability
• 29” front wheel/ 27.5” rear wheel; or 27.5 front and rear for ultimate versatility
• Head-tube angles adjustable between 63.9 and 65 degrees with Flip-Chip technology
• Fully insertion on 220mm dropper posts for Large and 200mm dropper posts on Medium sizes
• Universal derailleur hanger, threaded bottom bracket, plus internal and external cable routing for easy maintenance

Features and Geometry

• Lift Technology - Manuals, Bunnyhops and Pops Unlike Anything Else.
• Designed around a 29” front wheel and 27.5” rear wheel
• 63.9 head-tube angle / 37mm BB Drop. (Low Flip-Chip Position with 160mm Travel Fork and 29”/27.5” wheels)
• 65 head-tube angle / 25mm BB Drop (High Flip-Chip position with 160mm Travel Fork and 29”/27.5” wheels)
• 305mm Seat Tube Insertion capable of maxing out a 200mm Dropper Post (Regular)
• 330mm Seat Tube Insertion capable of maxing out a 220mm Dropper Post (Large)
• Threaded BB - 73mm BSA (photo samples shown with press-fit bb)

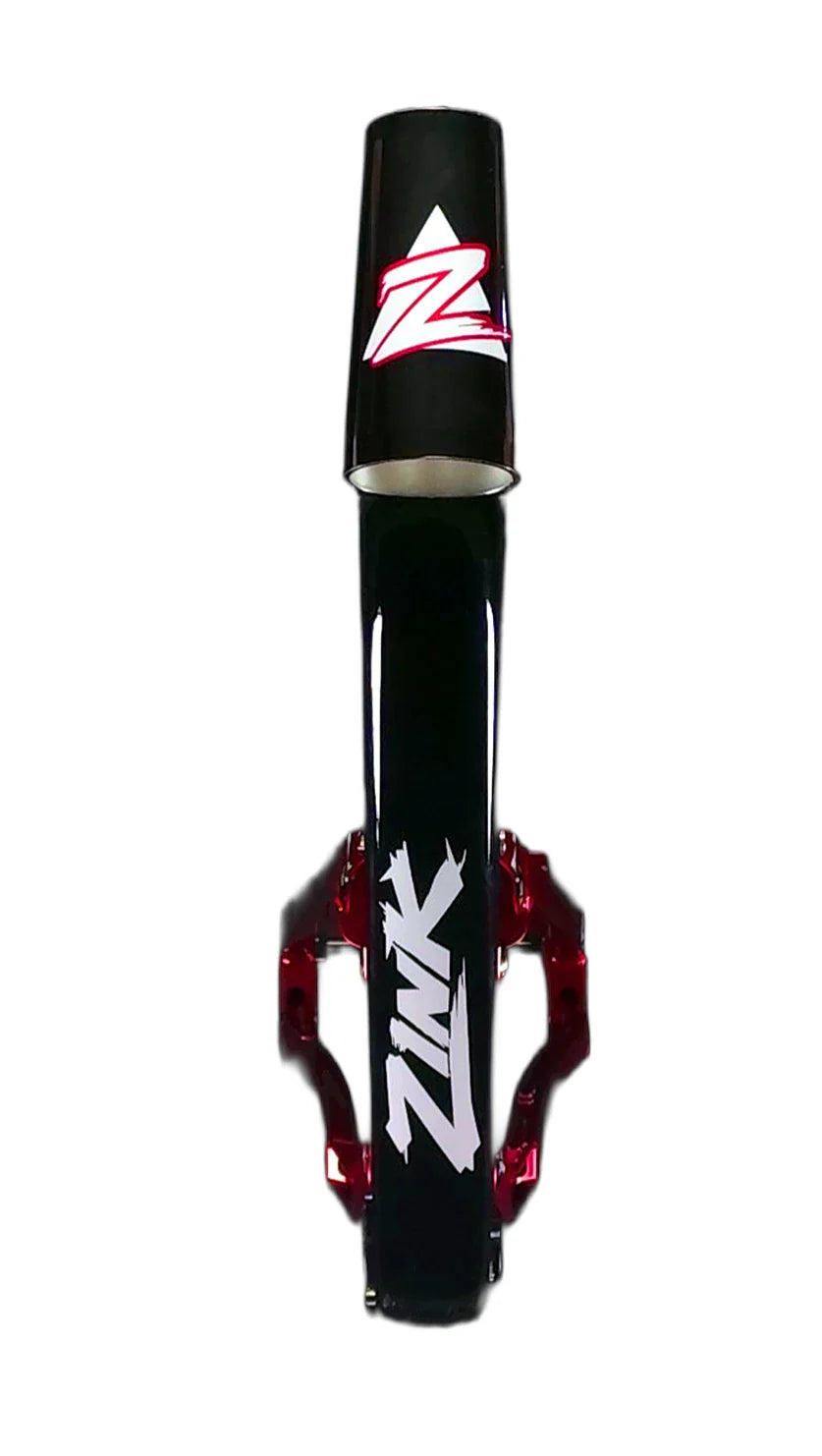

• ZS 44/56 Headset
• 230mm x 65mm rear shock size
• 31.6 Seat Tube Diameter
• Boost 148x12 Rear Axle
• 29” or 27.5” front wheel capable
• Internal and external cable routing options
• 180 post mount rear brake mounting
• UDH - Universal Derailleur Hanger
• Fidlock Ready - Base Included
• Frame weight: 7.8 lb / 3.5 KG (no shock)
